Price: €52.78
(as of May 27, 2025 10:13:43 UTC – Details)
Specification:

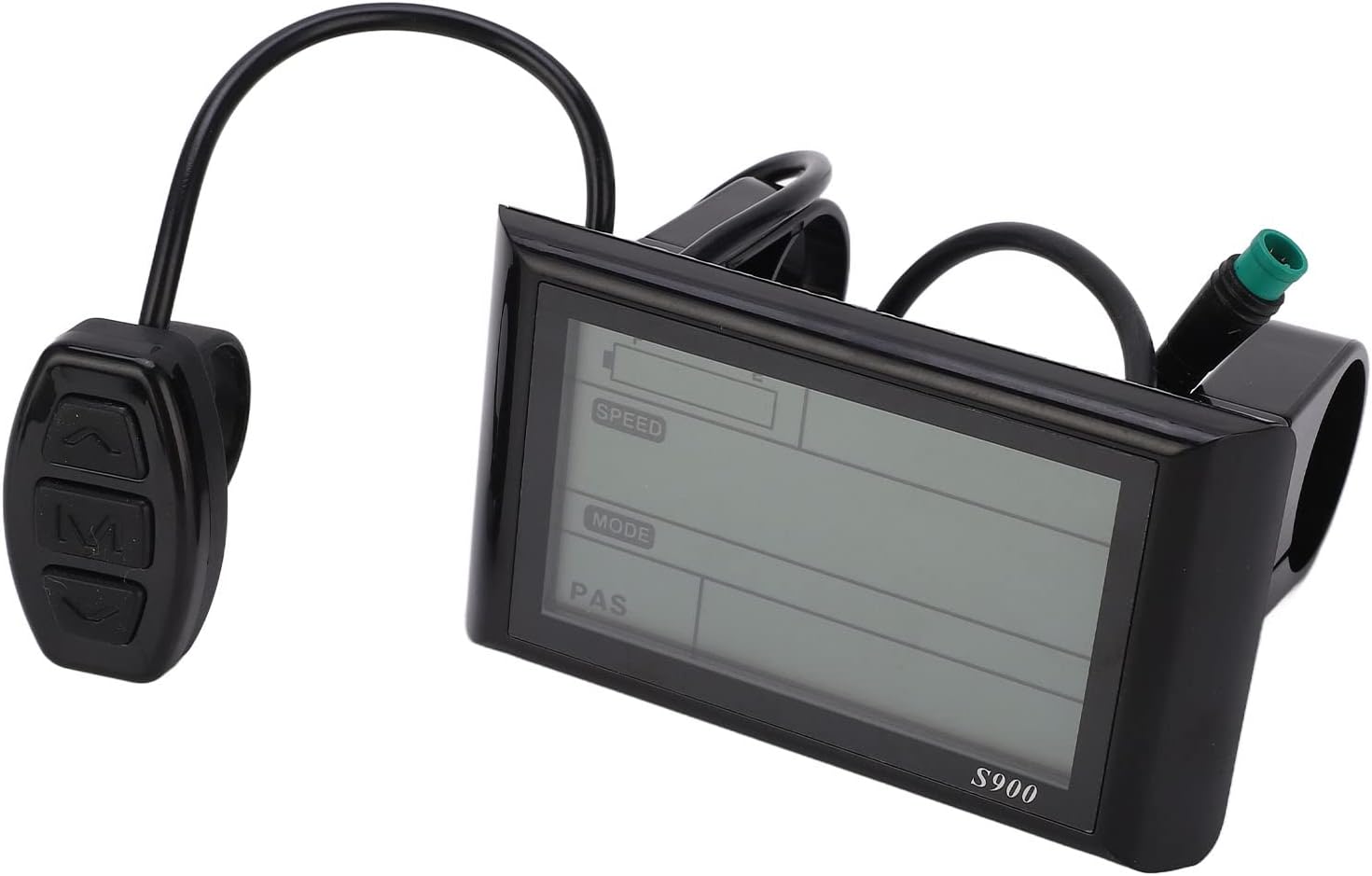

Item Type: LCD S900 Display Control Panel
Material: plastic.
Product color:As picture show
Control Panel LCD Display Size: Approx. 11 x 6 mm
Applicable handlebar installation size: suitable for handlebars with a diameter of 22.2 mm/0.9 inch
Product weight: approx. 223 g / 7.9 ounces.
Voltage: 36V 48V
Interface: 5-pin waterproof interface
Application: fit for JN controller and for Pasion Electric Bike Motor Kit
Function description:
1. Display function: speed display, servo gear indicator, power indicator, error message, total mileage, single mileage, headlight indicator, single time display.
2. Control and adjustment functions: power switch control, headlight switch control, 6 km/h jog control, wheel diameter adjustment, maximum speed adjustment, automatic idle time setting, backlight brightness adjustment, voltage level adjustment, for PAS connection.
Package list:
1 x LCD S900 Display Control Panel, 2 x Washer
1 x user manual (English language
Multifunction The S900 display has a variety of functions that can be used as a travel computer and control the entire electric bike system after conversion.
Battery level indicator: compatible with 36V and 48V voltage, intelligent power display, real battery power display, real-time recording of power consumption to ensure driving performance.
Display many useful data: the colourful display on the LCD meter makes it easier for you to display many useful data, such as
For PAS Installation When installed for PAS, this display allows the driver to select the desired level of support, which is more convenient for driving.
Wide Range of Applications The LCD S900 display control panel is suitable for 22.2mm / 0.9 inch handlebars, is the perfect accessory for electric bicycles, scooters, etc.
