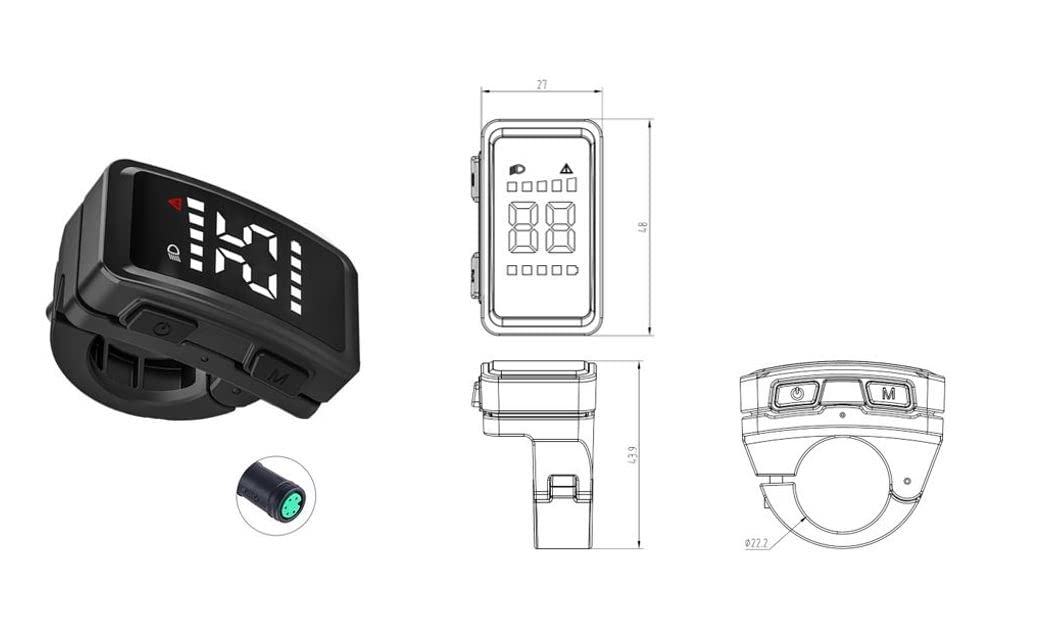

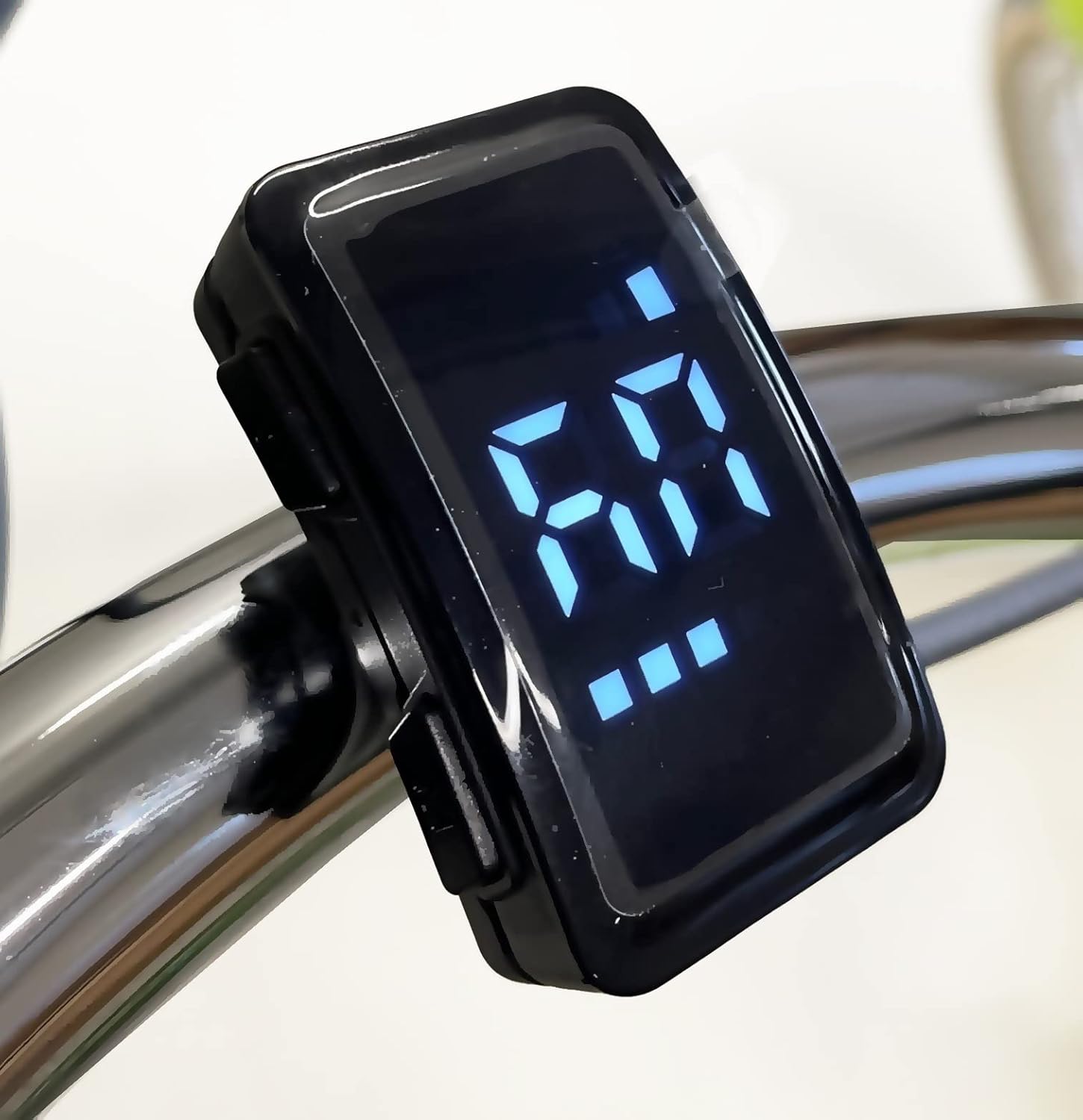

Enerpower DZ40 display UART Tongsheng compatible 6-pins.
Product introduction
Minimalist design, mounting without screws.
Super high-contrast 1.3 inch monochromatic LED screen.
IP65 waterproof.
Areas of use:
Suitable for electric bicycles according to EN15194 standard. This version has been modified for use on Tongsheng TSDZ2 engines
Technical highlights:
Power supply: DC 36 V / 48 V / 52 V.
Rated current: 18mA @ 36V.
Shut-off leakage current: <1uA.
Screen specification: 1.3 inch LED.
Communication method: UART (standard).
Operating temperature: -20 °C ~ 60 °C.
Storage temperature: -30°C ~ 80°C.
Protection class: IP65.
Function overview:
Only four buttons for operation.
Speed display: real-time speed (speed), maximum speed (max), average speed (AVG).
5 levels of support.
Lighting Indicator: Headlight on/off status indicator (information required from the controller)
6 km/h walking aid.
Displays errors (codes)
Power supply: DC 36 V / 48 V / 52 V suitable for motors in 36 V, 48 V and 52 V
Minimalist design, mounting without screws
Only four buttons for operation, speed display: real-time speed (speed), maximum speed (max), average speed (AVG), 5 levels of support
Tested on Tongsheng engines from generation 2020, 2021 and 2022 – not suitable for other engines. !
6 km/h walking aid
Displays errors (codes)
