Price: €52.36
(as of Jan 09, 2025 15:53:33 UTC – Details)

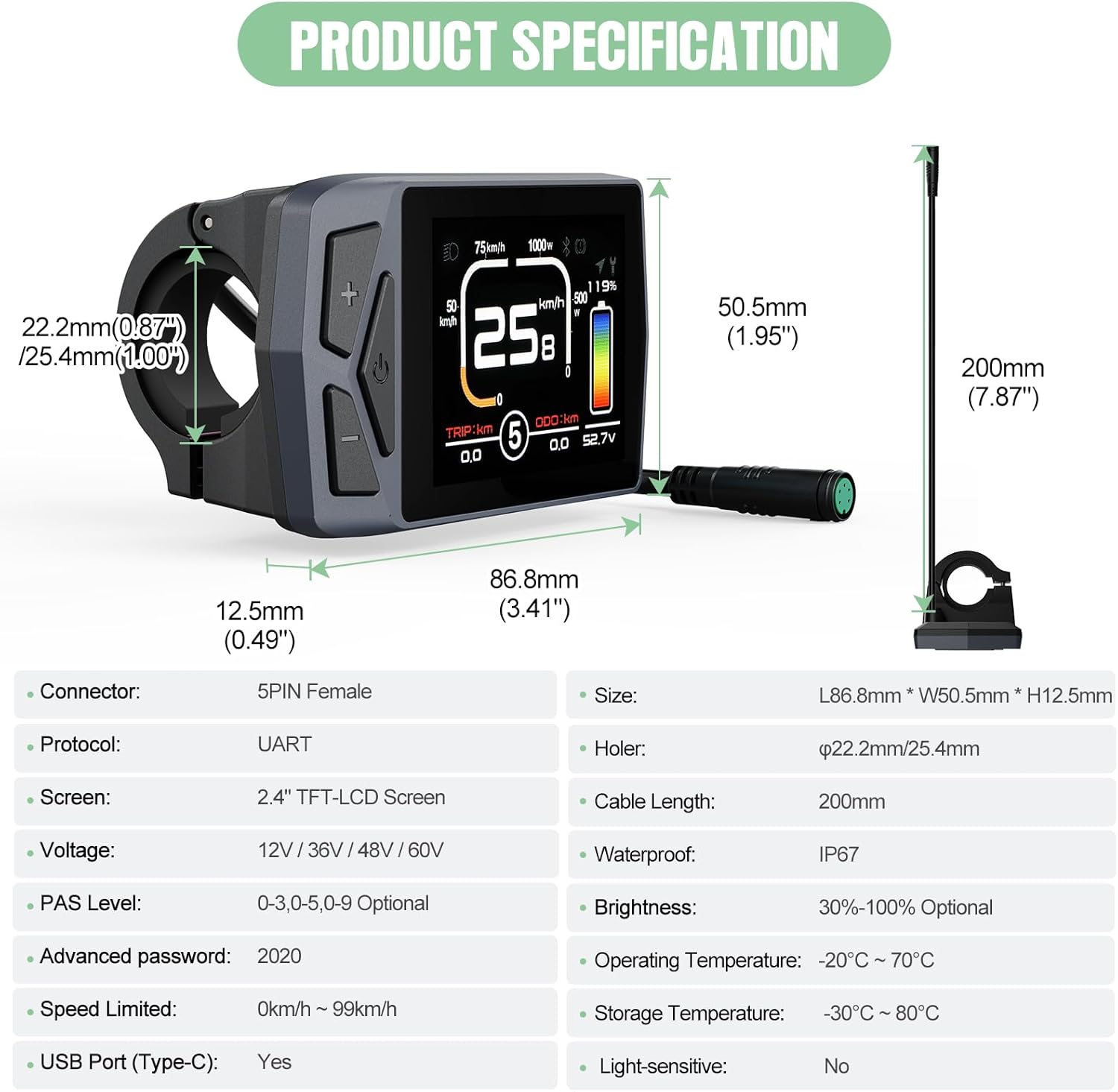

Specification:
- Model: EKD01.
- Function: can be connected to a smartphone.
- PAS: 0-3/0-5/0-9.
- Dimensions: 86.850.512.5 mm.
- Screen size: 2.4 inches.
- Color: RGB
- Resolution: 320 x 240px.
- Waterproof level: IP67.
- Connector type: M5 waterproof plug
- Voltage: 12V/32V/48V/60V.
- Operating temperature: -20 °C to +70 °C.
- USB Charger: Type-C
- Password: 2020
- Certification: CE/ROHS/REACH

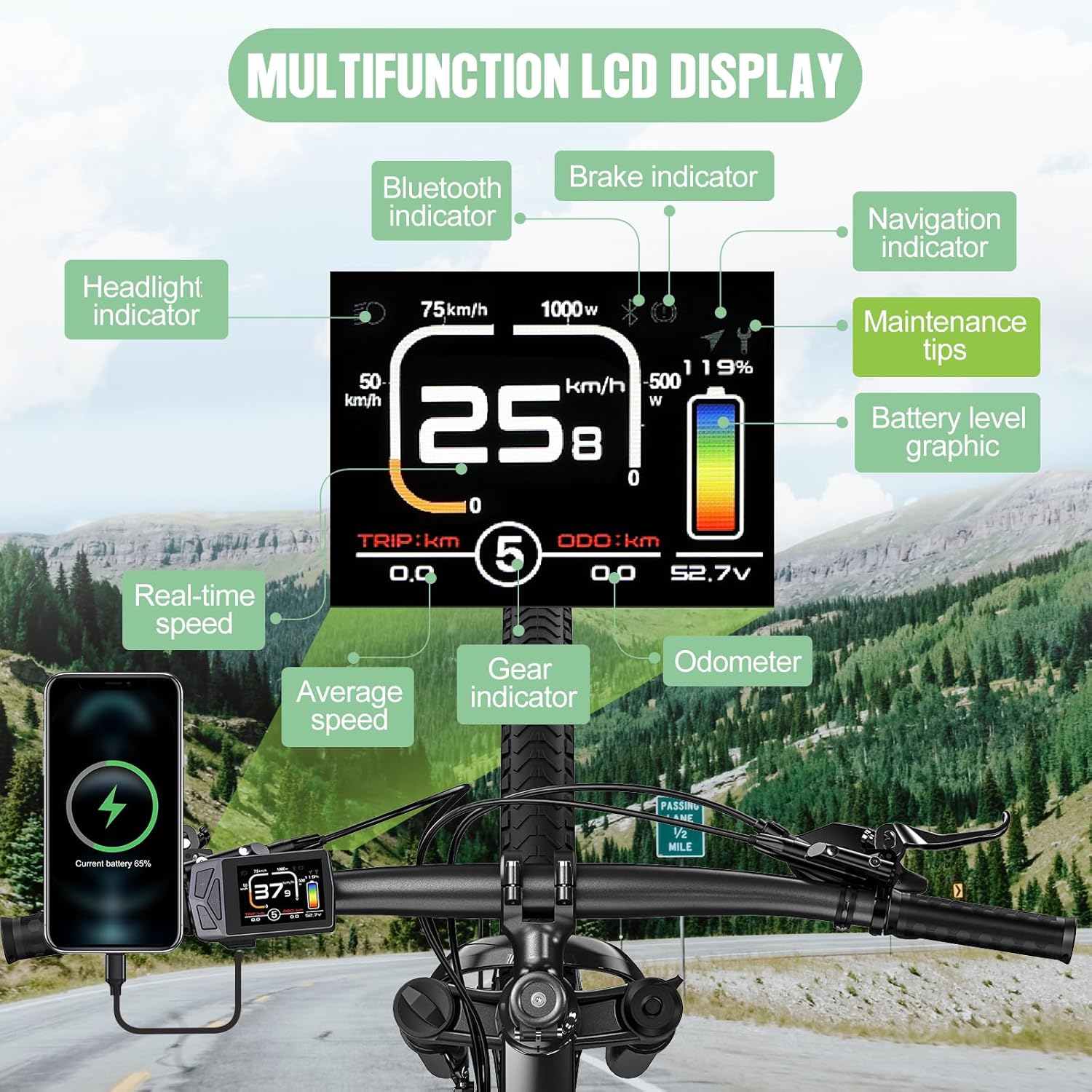

EKD01 TFT LCD display: Consists of a 2.4 inch IPS colour display and three integrated buttons, it is a good choice for beginners. It offers an affordable price, easy operation and basic features, including optional 0-9 PAS levels and a Type-C charging port

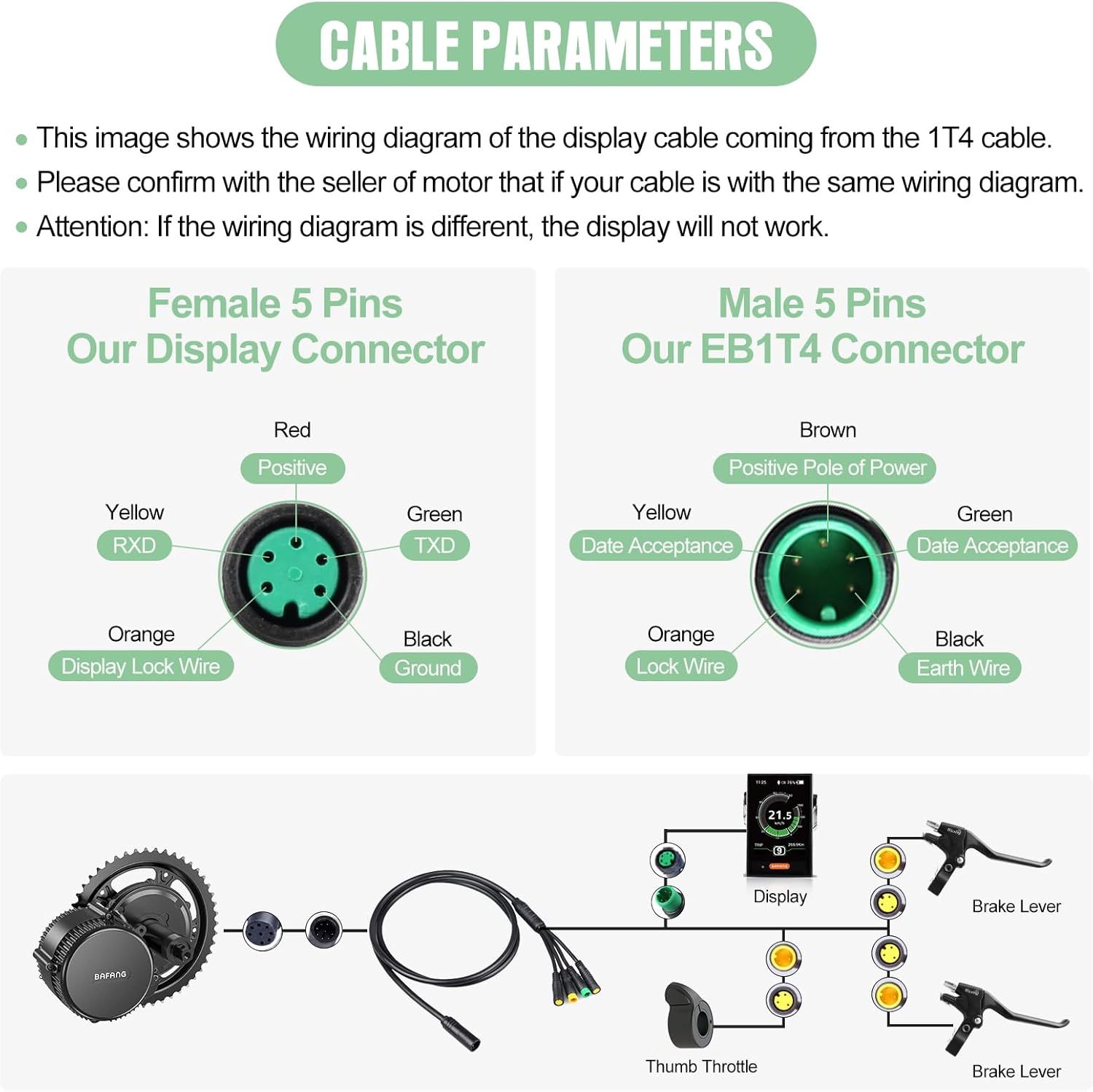

[Compatibility & Installation] The EKD01 display is exclusively compatible with BAFANG electric motors that use the UART communication protocol versions 5.0 to 5.8. It fits handlebars with a diameter of Ø22.2/25.4 mm and its plug is a 5-pin round female connector. If you are not sure about the compatibility, please contact us before purchase
[Appearance & Material] Slim, modern design with a large, easy-to-read display. The case is made of high quality ABS plastic. Waterproof according to IP 67
The EKD01 has 8 adjustable languages (English, French, German, Spanish, Italian, Polish, Dutch and Czech). The navigation feature makes it easy to find your way to your destination (5 free trials, then paid). Compared to other models, the odometer (ODO) can be set to zero.

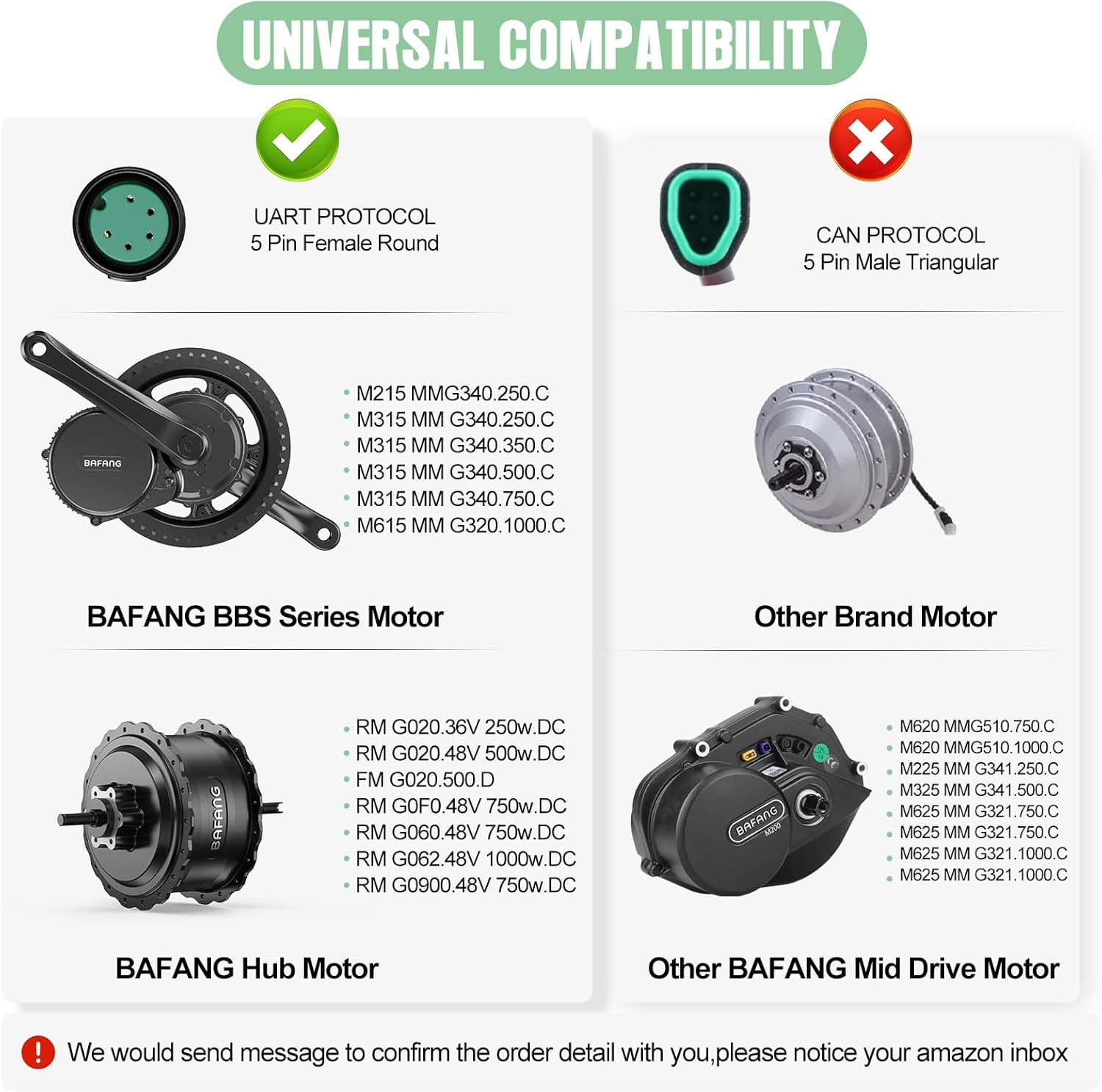

Please note that this LCD display is NOT compatible with all engines. Look closely at the second image on this product page. If you are not sure about the compatibility, please email us
-
Since 2003, BAFANG has been a leader in electric mobility, offering innovative drives. At Lacycle, your satisfaction counts. Thank you for choosing us for BAFANG products. Together into the future of mobility.
-
